🛤️ ROUGH ER: NETWORK
PAGE 1 OF 5 — THE CELLULAR HIGHWAY
THE HOOK

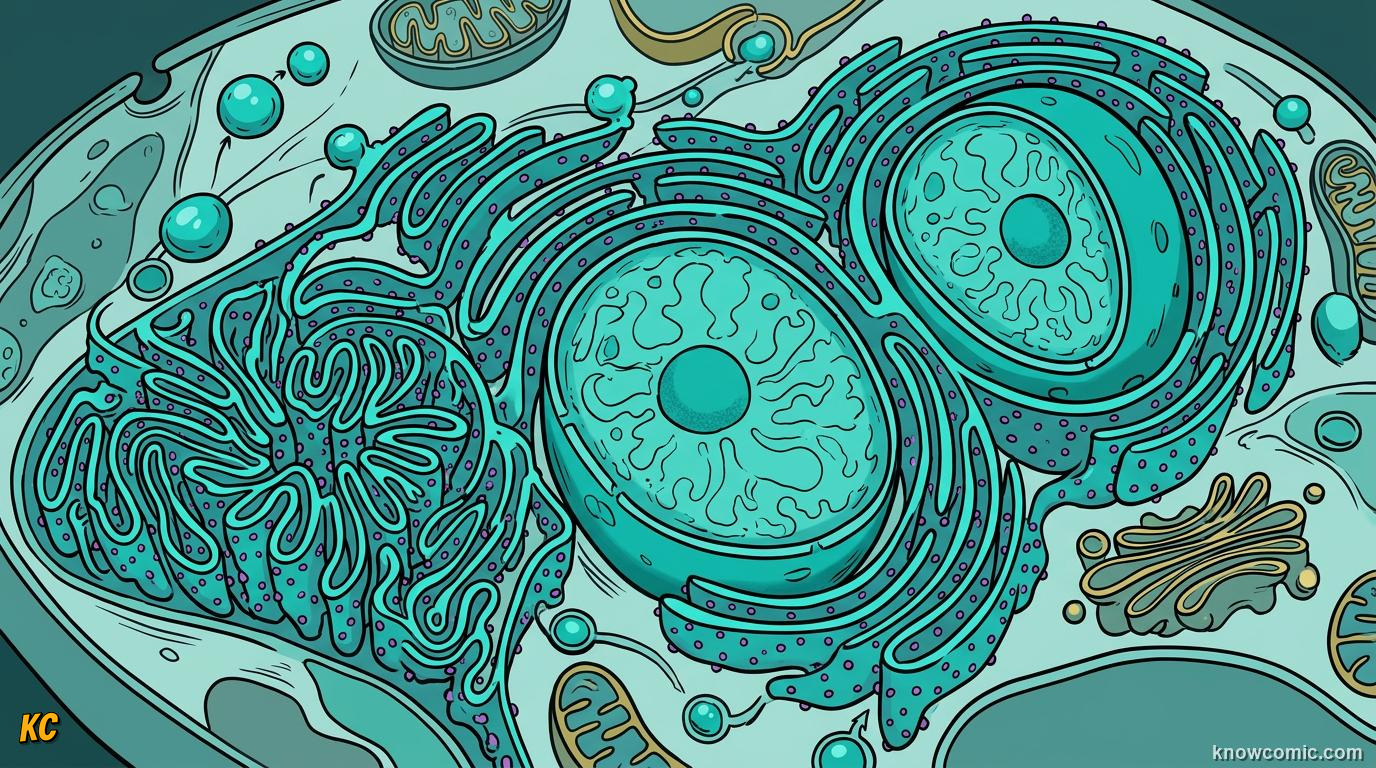

FOLDED MEMBRANES, BIG JOB
Deep inside a cell spreads a maze of folded membranes called the endoplasmic reticulum, or ER for short. When ribosomes dot its outer surface, scientists call it rough ER. Those tiny protein factories build new chains right into the ER lumen, the space inside the membrane tunnels. Rough ER is the cell's production and packaging line, turning genetic recipes into proteins that will travel to membranes, organelles, or out of the cell entirely.
⚡ DID YOU KNOW?
Rough ER gets its bumpy look from thousands of ribosomes stuck to the outside. Under an electron microscope those dots make the membrane look rough, which is exactly how it got its name.
NETWORK!

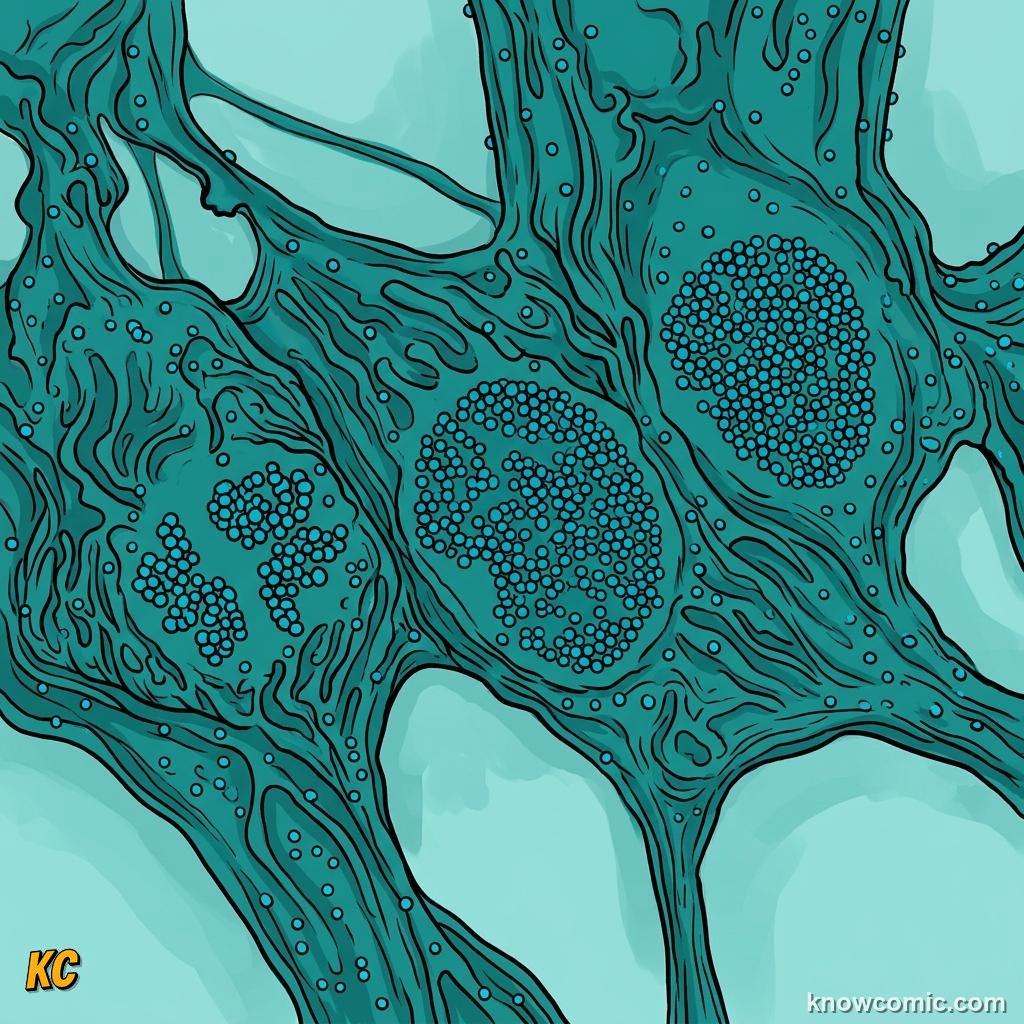

ER
🕸️ ER membranes fold into sheets and tubes
🛤️ They spread through much of the cytoplasm
🛤️ They spread through much of the cytoplasm

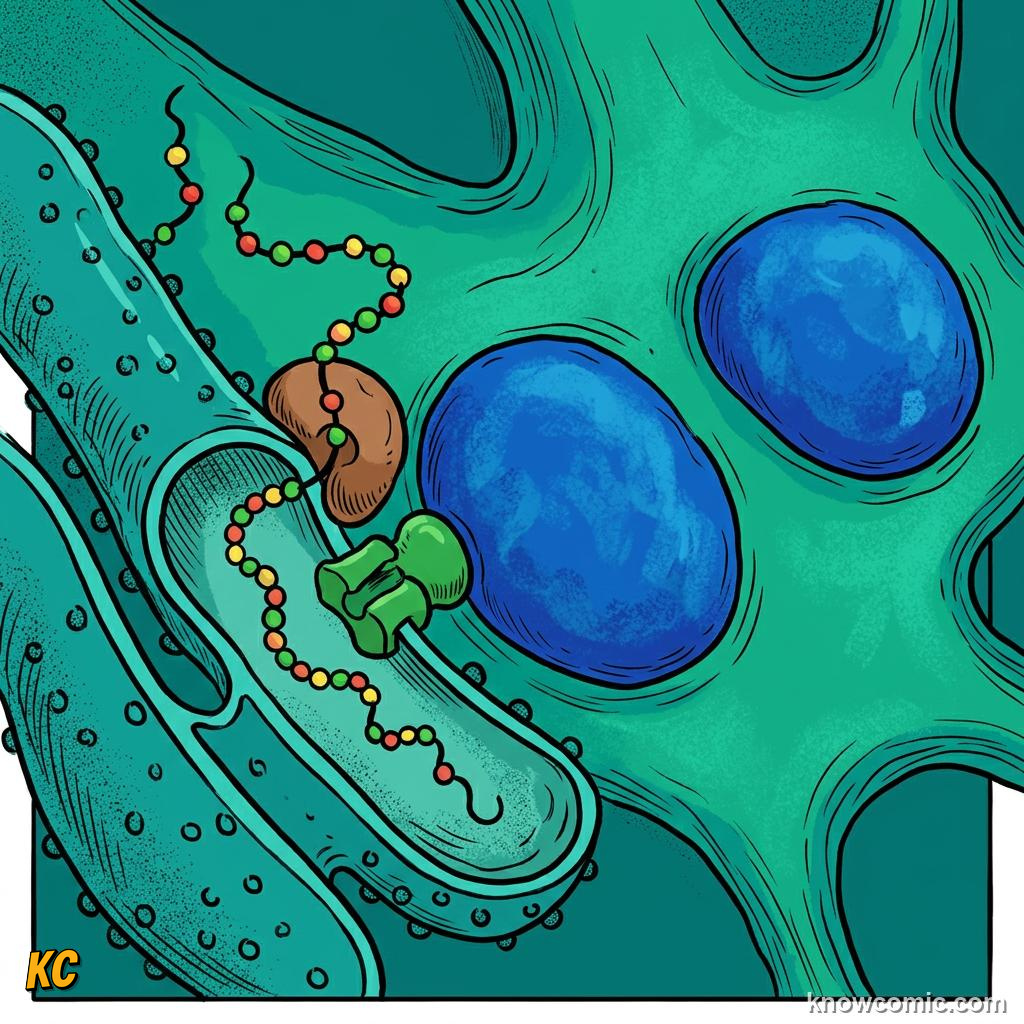

ROUGH
🔧 Ribosomes stud the outer membrane surface
🏭 That is what makes this ER "rough"
🏭 That is what makes this ER "rough"
PAGE 2 OF 5 — MAKING & FOLDING PROTEINS

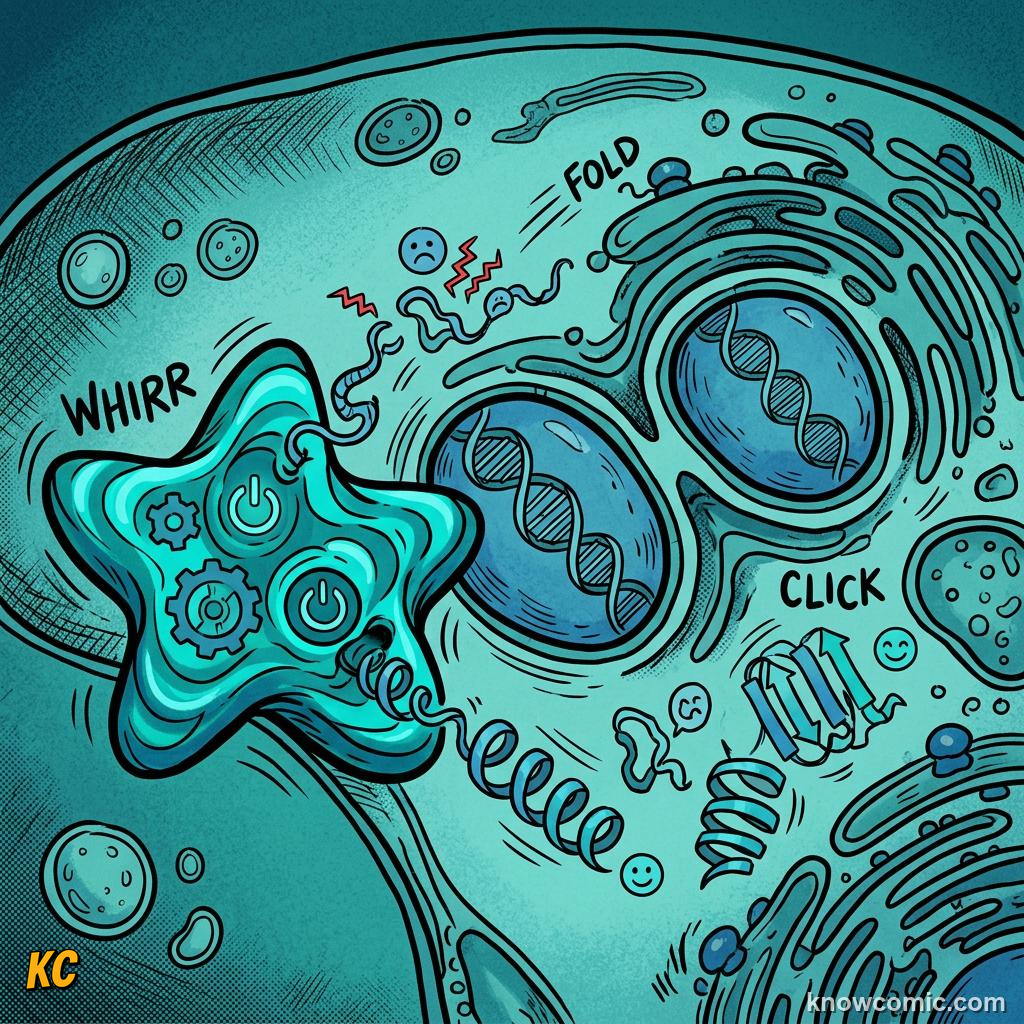

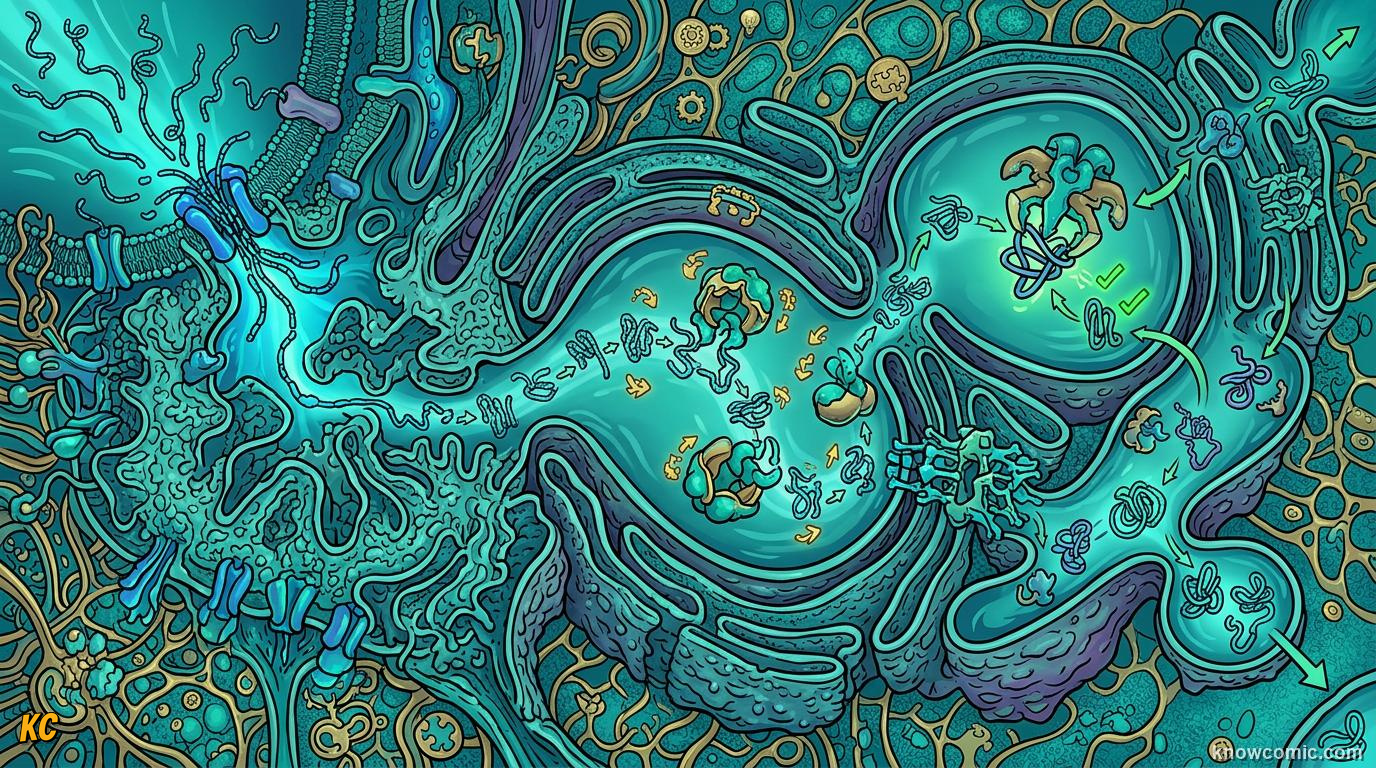

PROTEIN LINE
BUILD, FOLD, CHECK

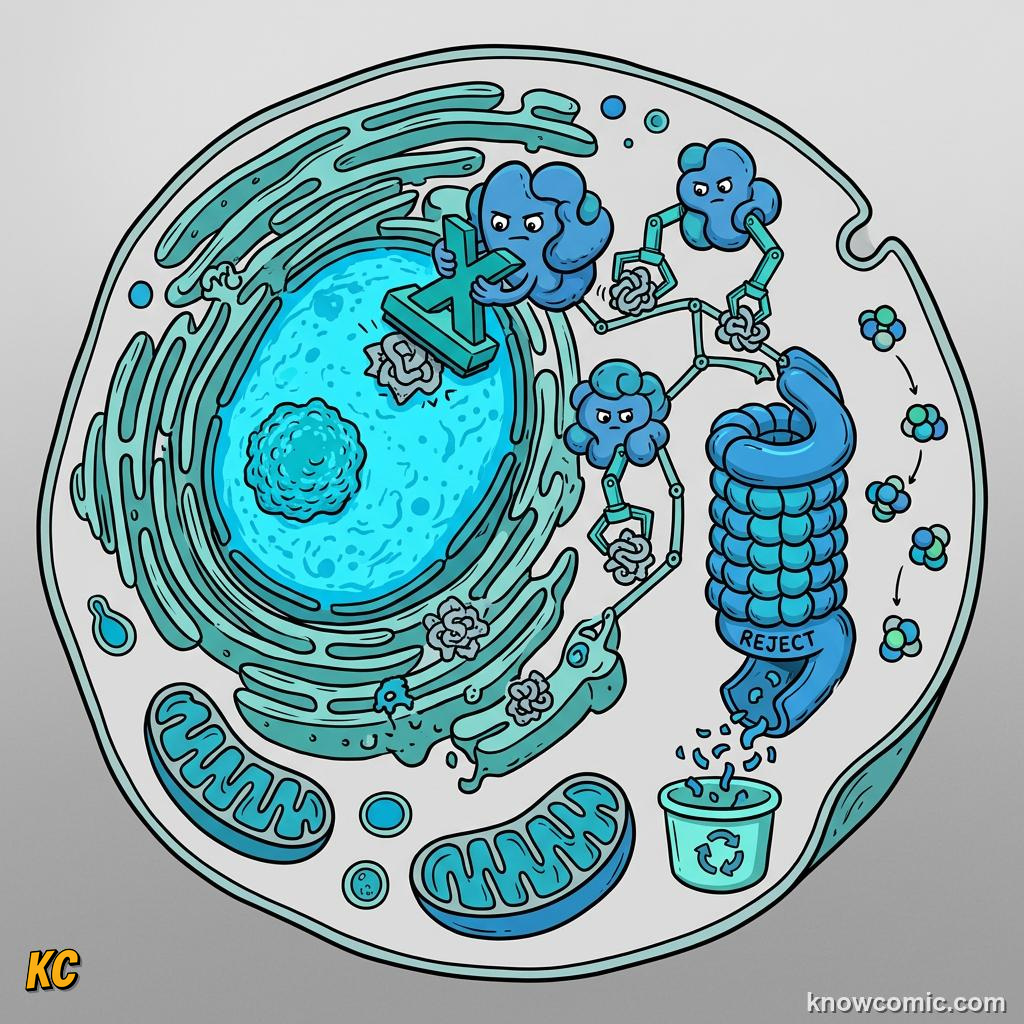

Bound ribosomes on rough ER read mRNA and feed growing protein chains directly into the ER lumen. Inside that protected tunnel, the chain folds into its proper 3D shape with help from special ER proteins called chaperones. Misfolded proteins get caught and sent for recycling so they do not cause trouble. Only correctly folded proteins move on to the next stage of their journey through the cell.
🧵 QUALITY CONTROL
Rough ER does more than build proteins. It folds them and checks their shape before shipping. Think of it as a factory floor with a quality inspector at every station.
FOLD!
LUMEN
🚇 The lumen is the tunnel inside ER membranes
🧬 New protein chains enter and fold here
🧬 New protein chains enter and fold here
RIBOSOMES
🔧 Bound ribosomes feed chains into the lumen
📤 These proteins often head for export
📤 These proteins often head for export

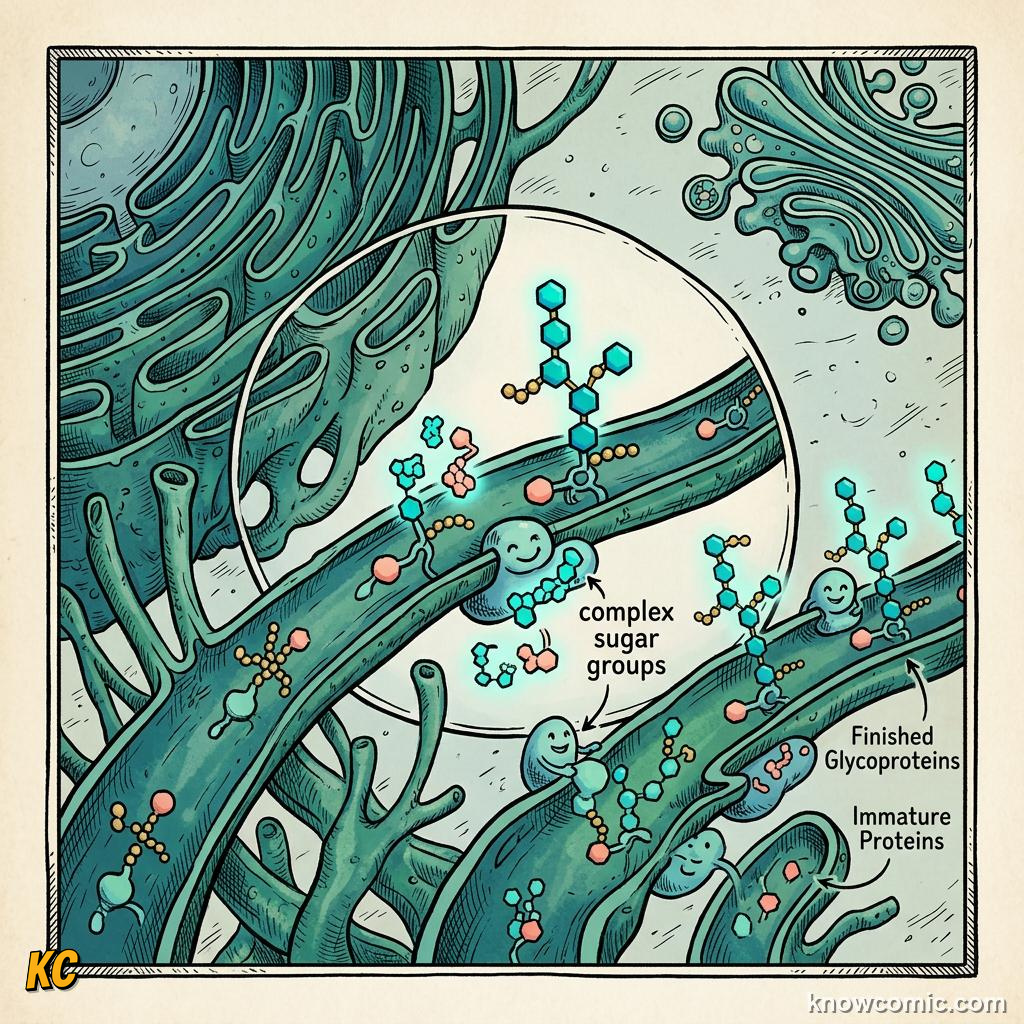

CHAPERONES
🤝 Helper proteins guide correct folding
✅ Only properly shaped proteins pass through
✅ Only properly shaped proteins pass through
PAGE 3 OF 5 — CONNECTED TO THE NUCLEUS

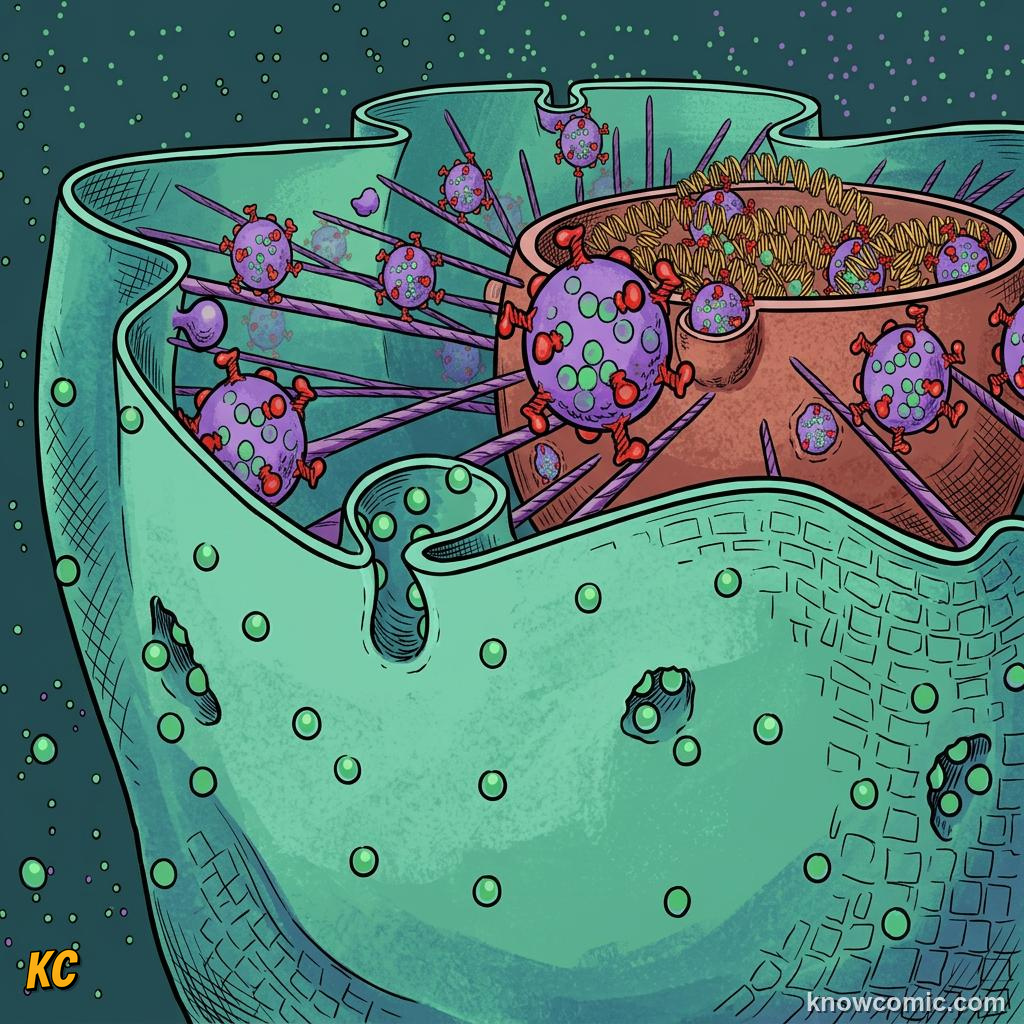

NUCLEAR LINK
🧬 Rough ER connects to the nuclear envelope
📜 mRNA exits the nucleus near the ER
📜 mRNA exits the nucleus near the ER

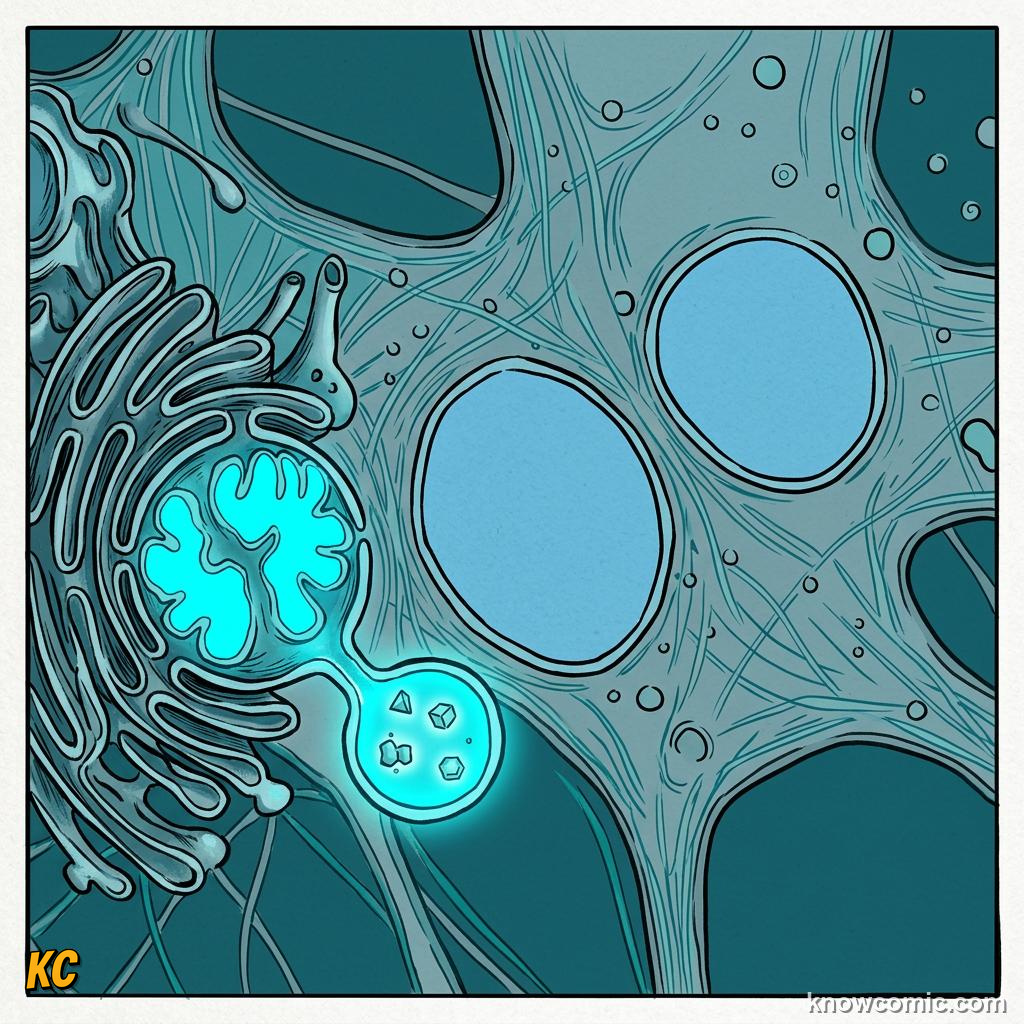

ONE SYSTEM
🔗 Membranes flow continuously from nucleus to ER
🏭 Instructions and production sit side by side
🏭 Instructions and production sit side by side

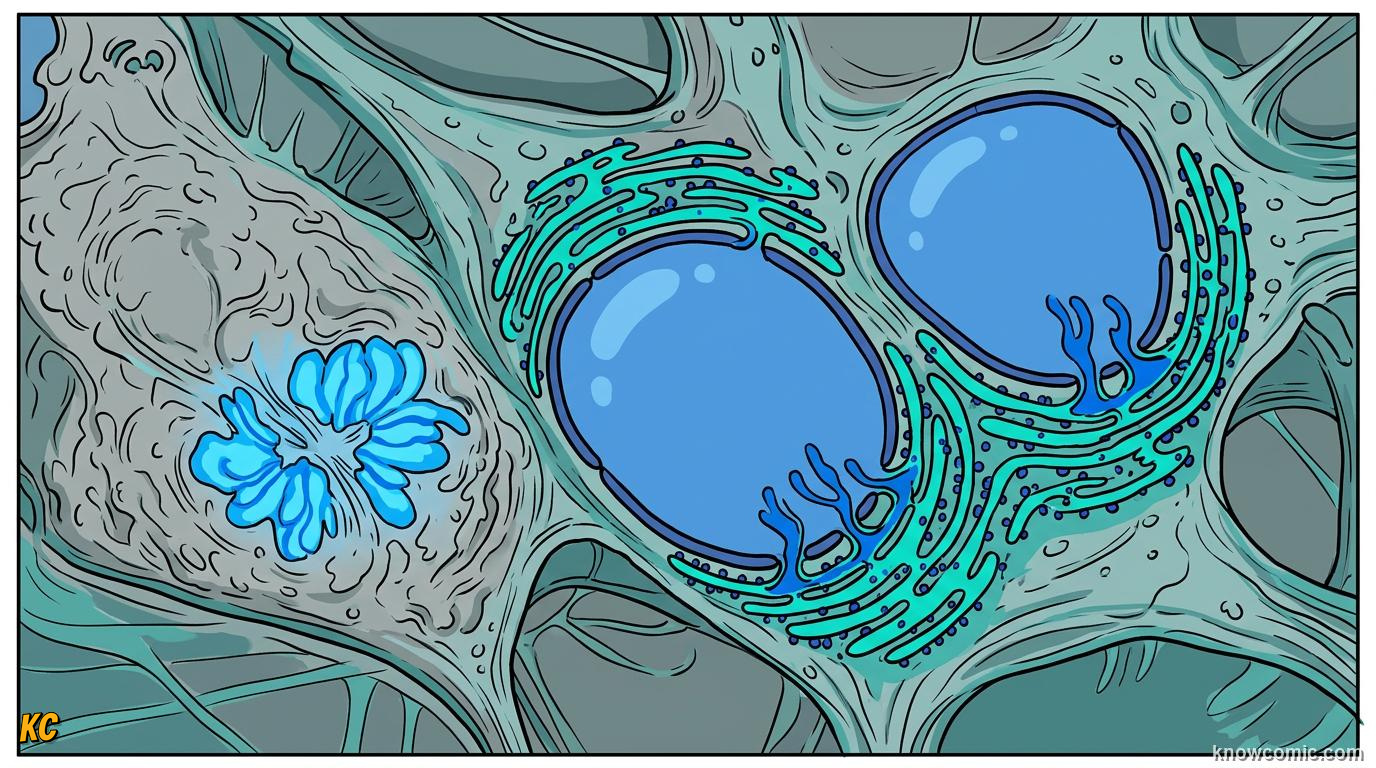

INSIDE MAP
A CONTINUOUS MEMBRANE WEB
Rough ER is not an isolated island. Its membranes connect directly to the nuclear envelope, the double membrane wrapping the nucleus. That physical link means mRNA copied from DNA can reach ribosomes on the ER almost immediately. From there the ER network branches outward through the cytoplasm like highways leaving a central hub. This layout keeps the message close to the machinery that turns it into protein.
🗺️ SMART LAYOUT
Connecting rough ER to the nuclear envelope saves time and reduces errors. The cell places its protein assembly line right next to the place where genetic instructions first arrive.
LINKED!
PAGE 4 OF 5 — ROUGH VS SMOOTH & GOLGI
TWO ER TYPES

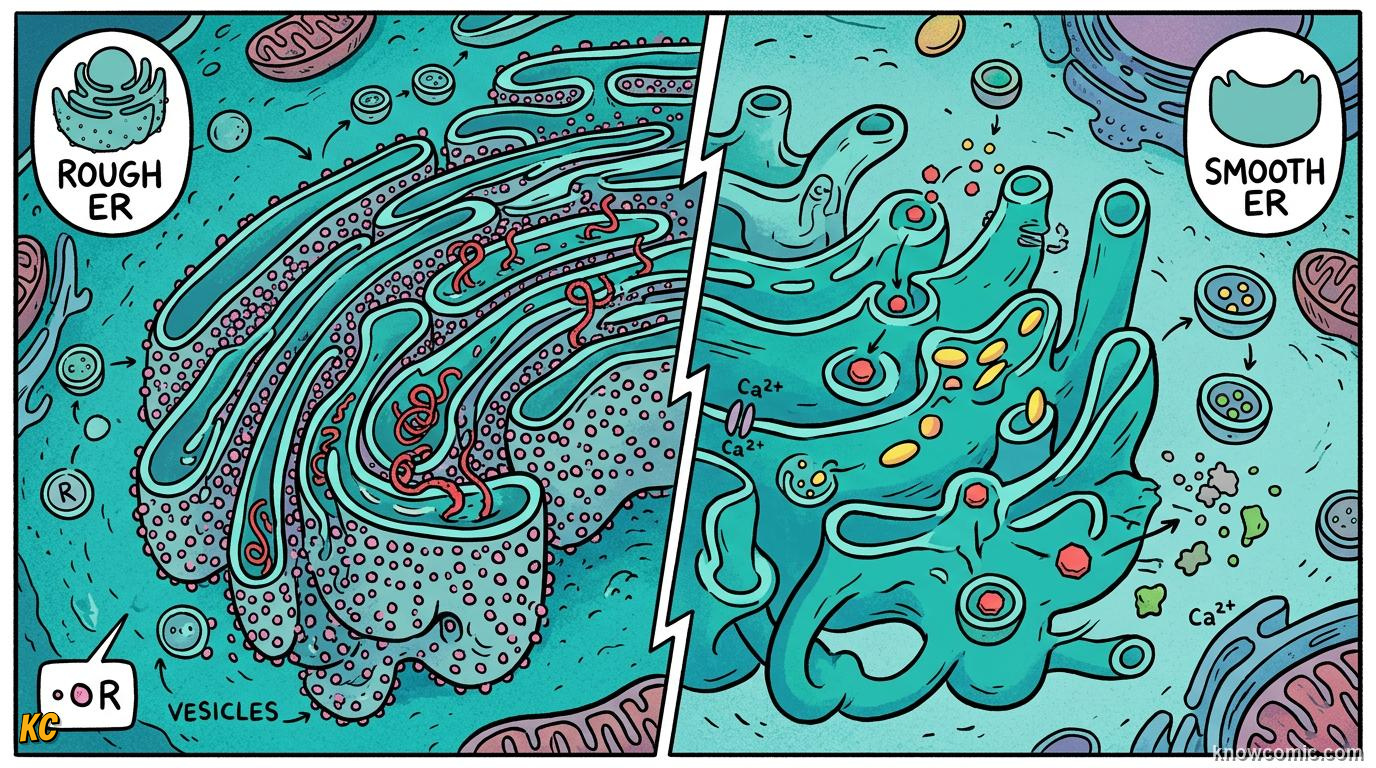

SMOOTH ER: NO RIBOSOMES

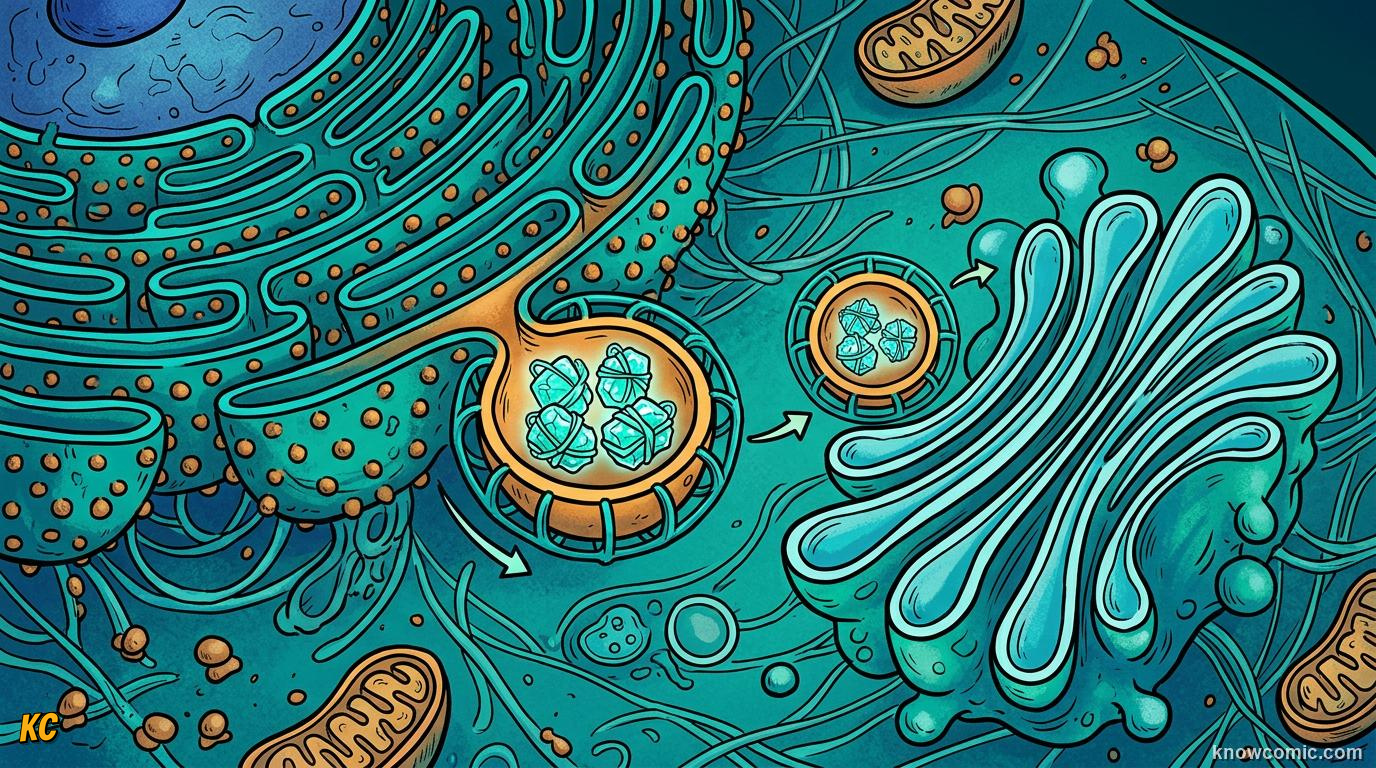

Not all ER looks rough. Smooth ER is the same membrane system but without ribosomes on its surface, so it appears smooth under the microscope. Smooth ER handles different jobs, such as making lipids and helping detoxify certain chemicals. Rough ER focuses on protein production and folding. Finished proteins leave rough ER in small transport vesicles that bud off and travel to the Golgi apparatus, the cell's sorting and shipping center.
📦 GOLGI PARTNER
Rough ER and the Golgi apparatus work as a team. ER builds and folds proteins, then vesicles carry them to the Golgi for final packaging, labeling, and delivery to the right destination inside or outside the cell.
SHIP!
SMOOTH
✨ Smooth ER has no ribosomes on its surface
🧪 It makes lipids and handles other tasks
🧪 It makes lipids and handles other tasks

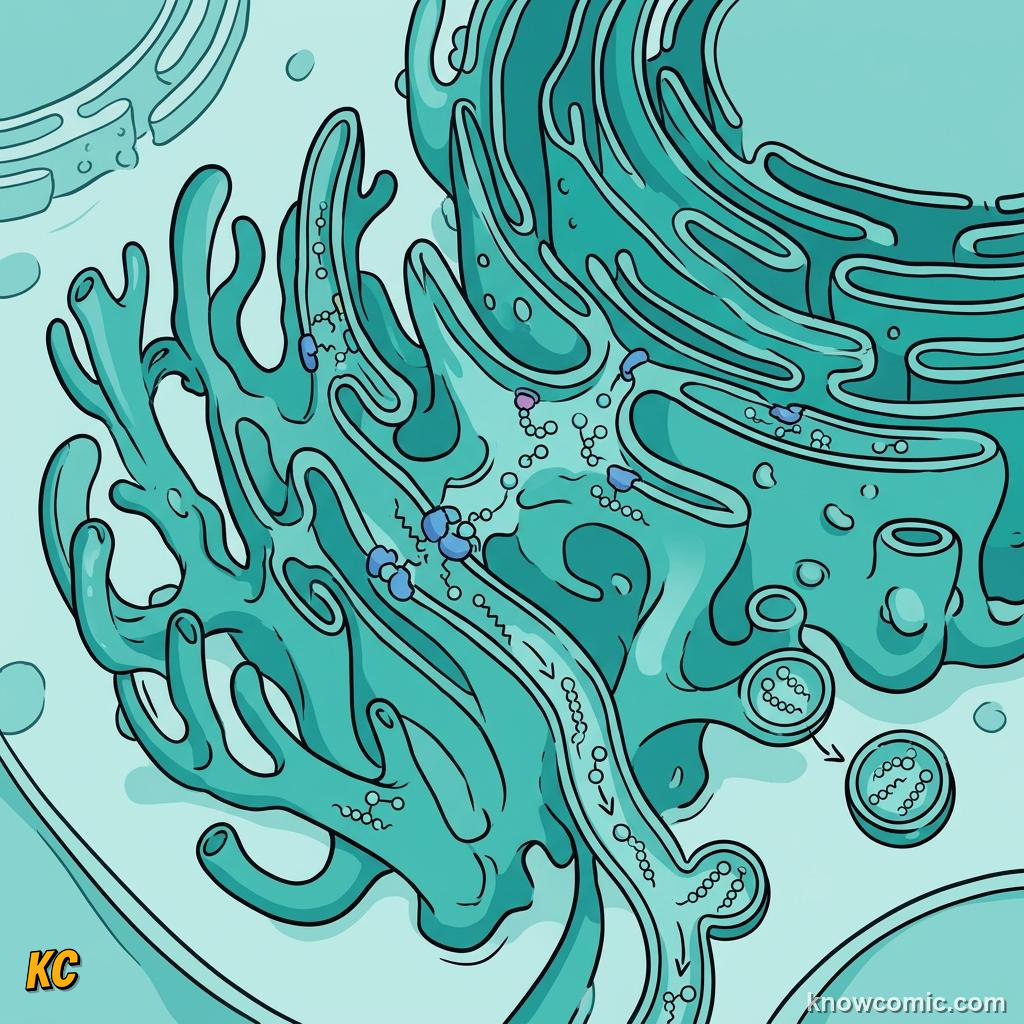

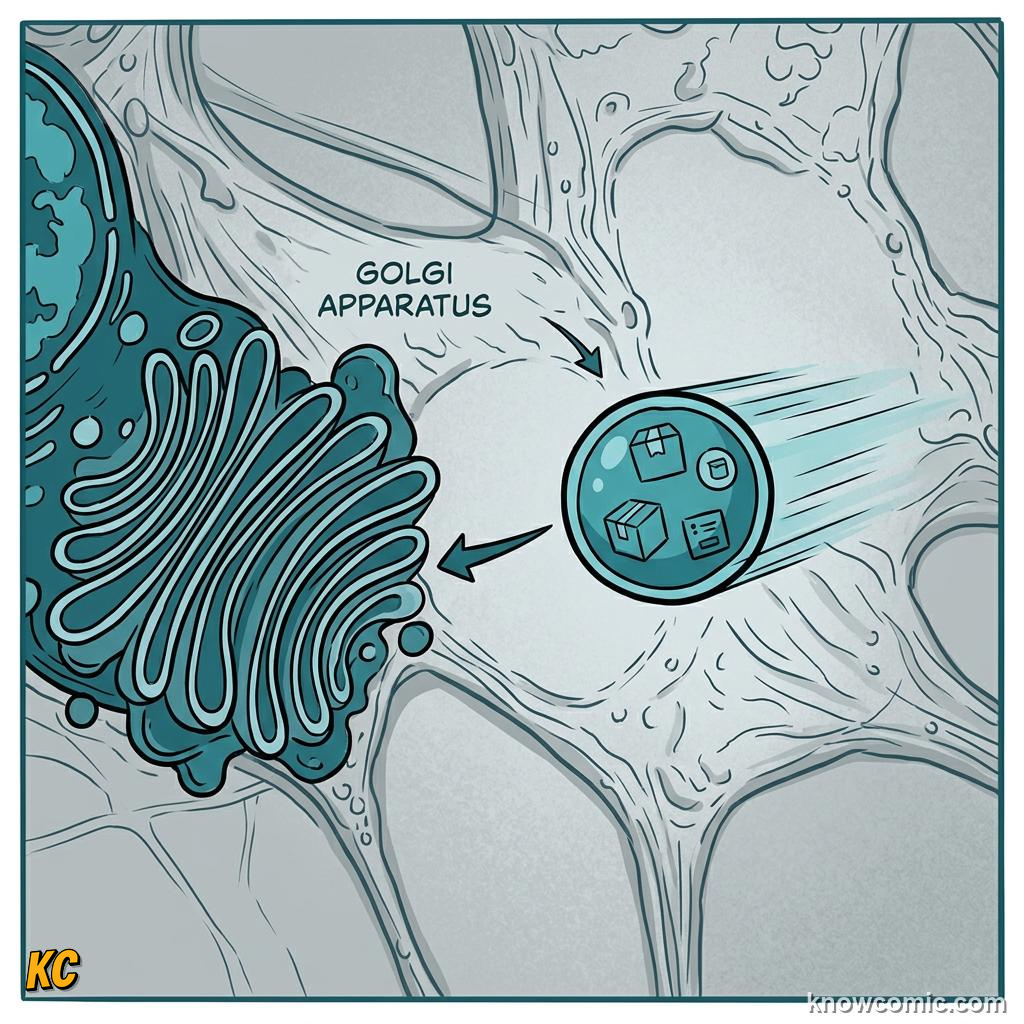

VESICLES
🫧 Tiny vesicles bud off from rough ER membranes
🚚 They carry folded proteins to the Golgi
🚚 They carry folded proteins to the Golgi

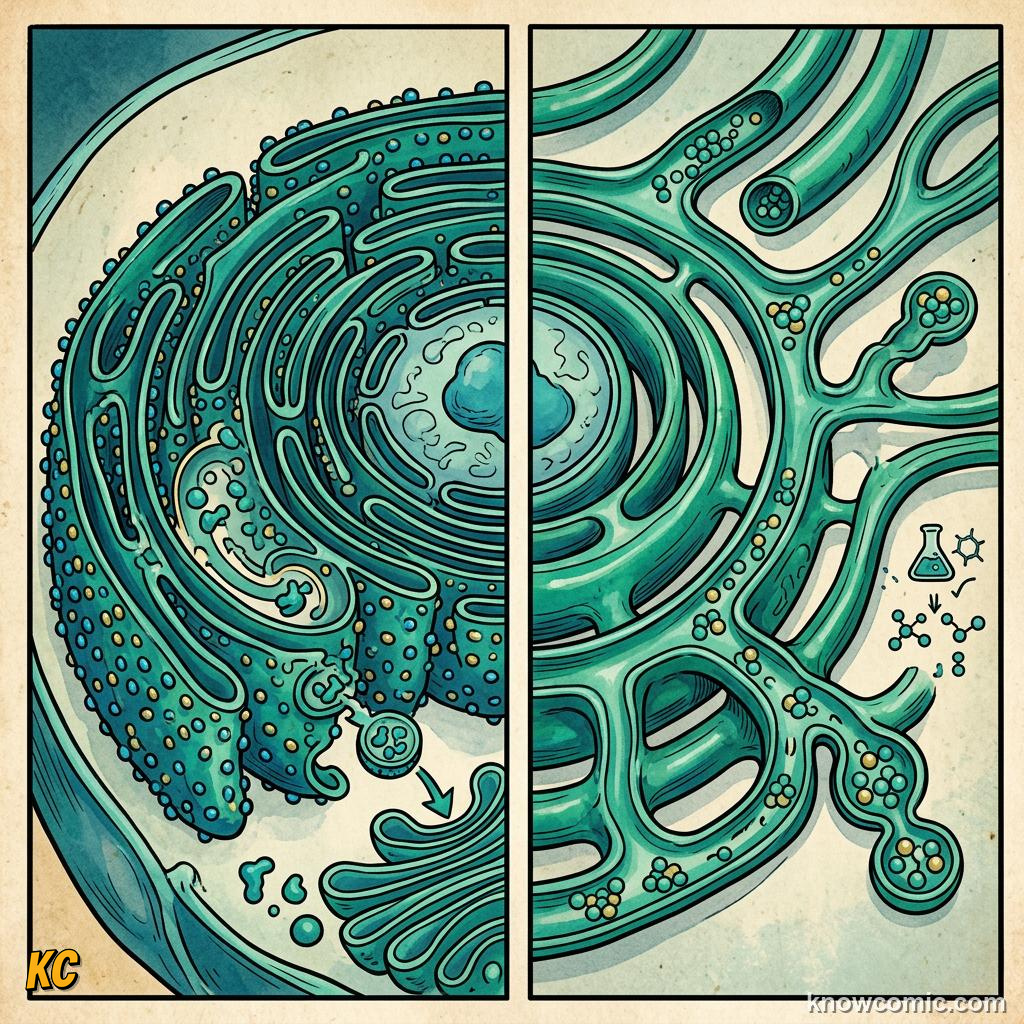

GOLGI
📦 Golgi sorts and packages proteins for delivery
🎯 Each protein reaches its final destination
🎯 Each protein reaches its final destination
PAGE 5 OF 5 — THE DISTRIBUTION NETWORK
EVERY PART FED

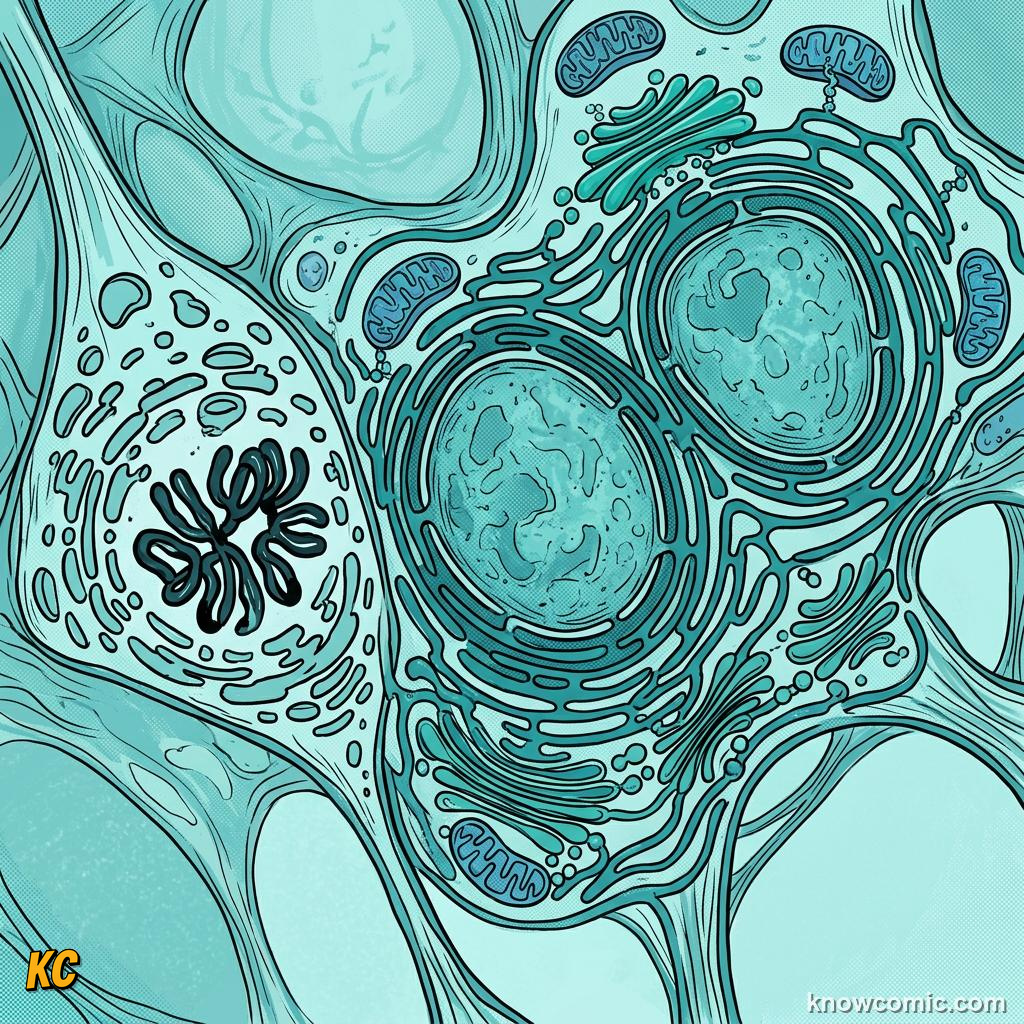

ROUGH ER KEEPS CELLS SUPPLIED
Every part of your body depends on proteins made and processed along the rough ER network. Hormones, antibodies, digestive enzymes, and membrane channels all start on ribosomes studding these folded membranes. Rough ER connects to the nucleus, partners with the Golgi, and contrasts with smooth ER that lacks ribosomes entirely. Together they form a high-speed distribution system that ensures each region of the cell gets the building blocks it needs to stay alive and working.
🌍 BIG PICTURE
Cells that export lots of protein, like gland cells and antibody-making immune cells, are packed with rough ER. The more protein a cell ships, the bigger its rough ER network tends to be.
DELIVER!
EXPORT
🌍 Some ER proteins leave the cell entirely
💉 Insulin and antibodies follow this export route
💉 Insulin and antibodies follow this export route
REMEMBER
🛤️ KEY FACTS
Rough ER has ribosomes on its surface, makes and folds proteins, connects to the nuclear envelope, and sends vesicles to the Golgi. Smooth ER lacks ribosomes and handles different jobs like lipid production.
🔧 Ribosomes on surface = rough ER
🧬 Connects to nucleus, ships to Golgi
✨ Smooth ER has no ribosomes
🧬 Connects to nucleus, ships to Golgi
✨ Smooth ER has no ribosomes
🧠 QUIZ TIME!
ROUGH ER: NETWORK · 5 QUESTIONS
QUESTION 01
What makes rough ER look "rough"?
QUESTION 02
What does smooth ER lack that rough ER has?
QUESTION 03
Rough ER connects directly to which structure?
QUESTION 04
Which organelle works with rough ER to package and ship proteins?
QUESTION 05
What happens to proteins inside rough ER?
