⚡ THE SPEED OF SOUND
TOPIC 04 · MUSIC UNIVERSE · PHYSICS · MEDIUM · TRAVEL
PAGE 1 OF 5 · NOT ALL SOUND IS EQUAL
SPEED CHANGES
Comic illustration: sound traveling at different speeds through steel, water, and air
SOUND HAS A SPEED LIMIT!
Sound travels at different speeds depending on the material. It moves fastest through solids like steel, slower through water, and slowest through the air we breathe every single day. The medium matters because sound needs particles to bump together, and some materials pass those bumps along much faster than others.
⚡ DID YOU KNOW?
In air at room temperature, sound zooms along at about 343 meters per second. That is roughly 1,235 kilometers per hour, faster than a race car but far slower than light!
ZOOM!
FASTEST
Comic illustration: sound racing through a steel rail
🔩 Steel: about 5,000 m/s
🪵 Wood and rock are fast too
SLOWEST
Comic illustration: sound moving slowly through open air
💨 Air: about 343 m/s
🌊 Water sits in the middle
PAGE 2 OF 5 · SOLIDS, LIQUIDS, AND GASES
THREE SPEEDS

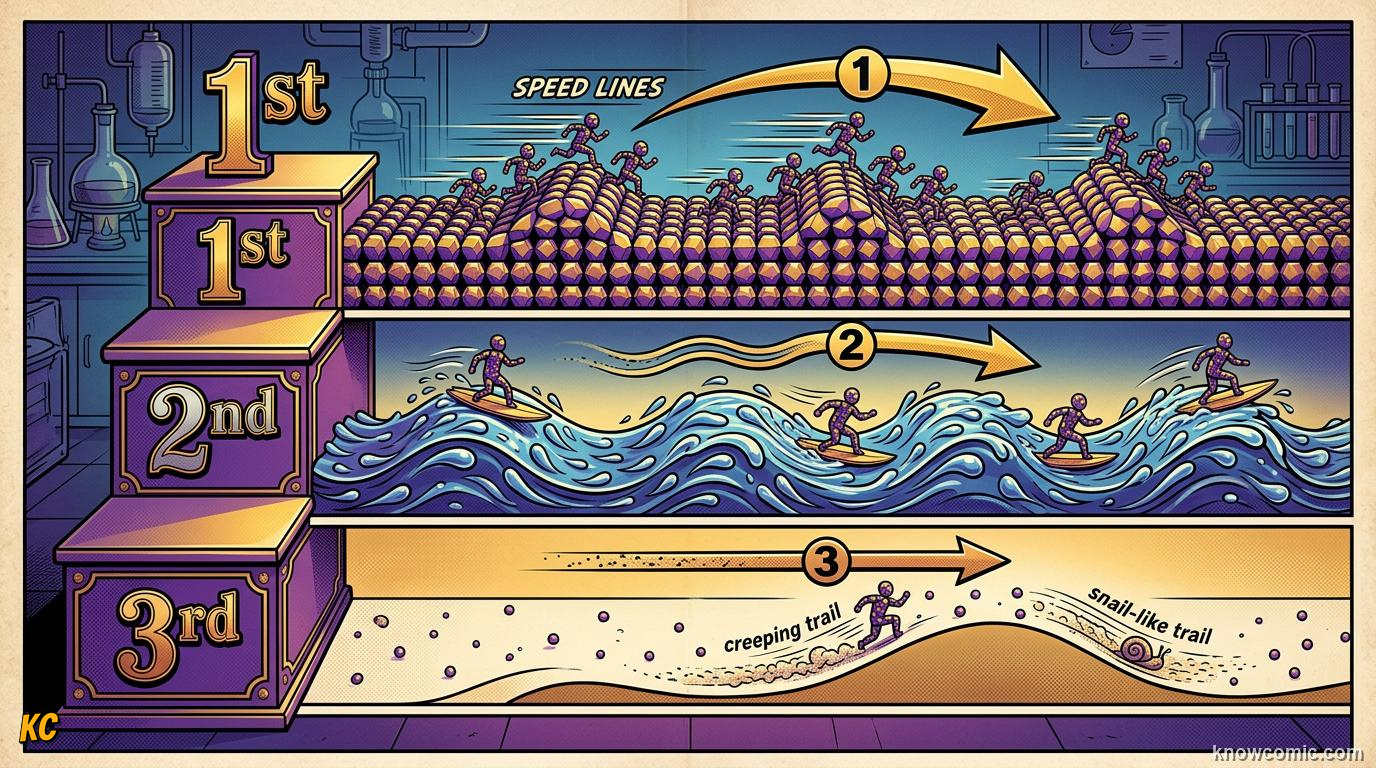

Comic illustration: comparing sound speed in solid, liquid, and gas
RANKING THE MEDIA
In a solid, particles sit tightly packed like friends holding hands in a crowded line. A push at one end reaches the other end almost instantly. In a liquid, particles slide past each other, so the wave moves at a medium pace. In a gas like air, particles are spread far apart, so each bump takes longer to reach the next neighbor.
🏆 SPEED CHART
Steel: ~5,000 m/s. Water: ~1,500 m/s. Air: ~343 m/s. Solids win, liquids come second, and gases are the slowest for sound travel.
RACE!
SOLID

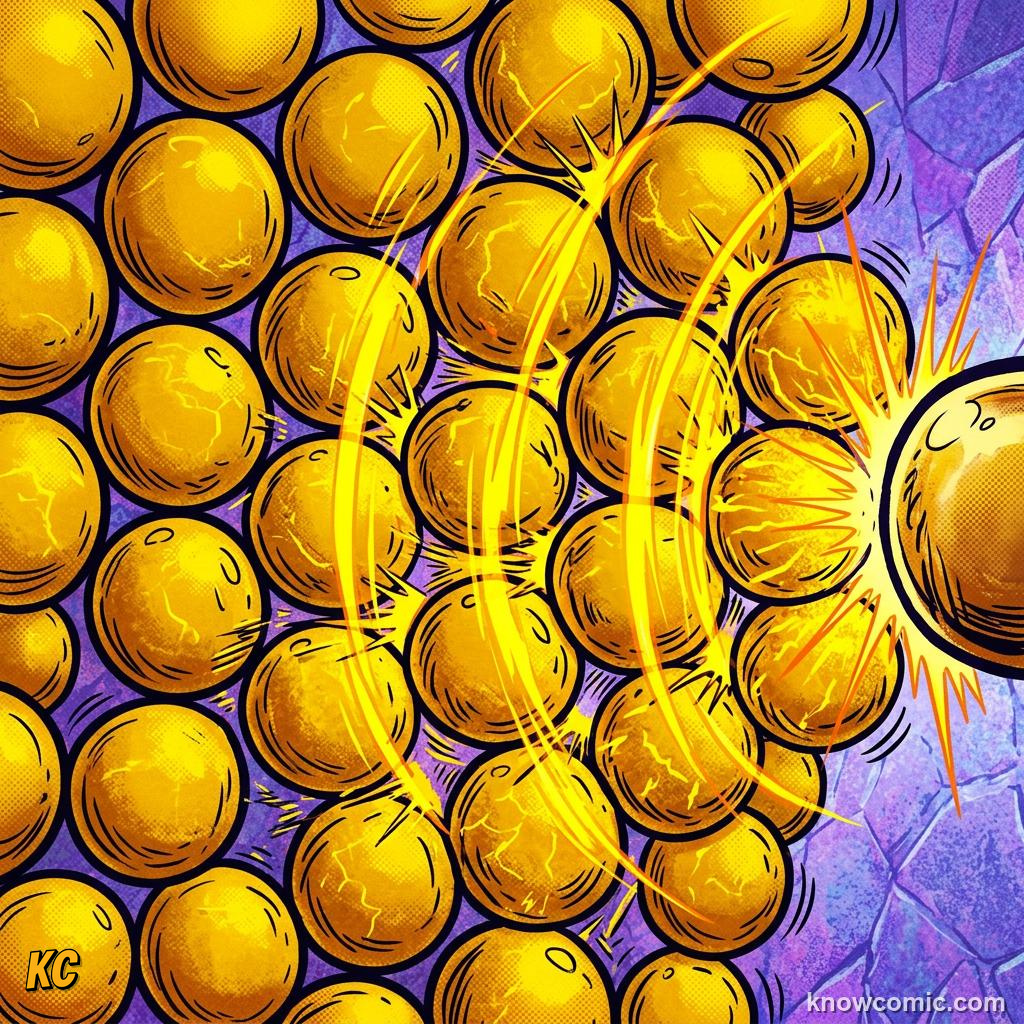

Comic illustration: tightly packed particles in a solid passing vibration
🔩 Particles packed tight
⚡ Fastest sound speed
LIQUID
Comic illustration: sound wave moving through water molecules
🌊 Particles close but sliding
🐋 Whales use this to talk far
GAS
Comic illustration: widely spaced air particles slowing sound
💨 Particles far apart
🗣️ Our voices travel here
PAGE 3 OF 5 · WHY THE MEDIUM MATTERS
CLOSE UP
Comic illustration: particles close together in a solid material
🔗 Tight bonds pass bumps fast
🪵 Tap a table and listen!
FAR APART
Comic illustration: sparse air particles with gaps between them
🕳️ Big gaps slow each bump
💨 Air feels easy but sound crawls
PARTICLE SPACING

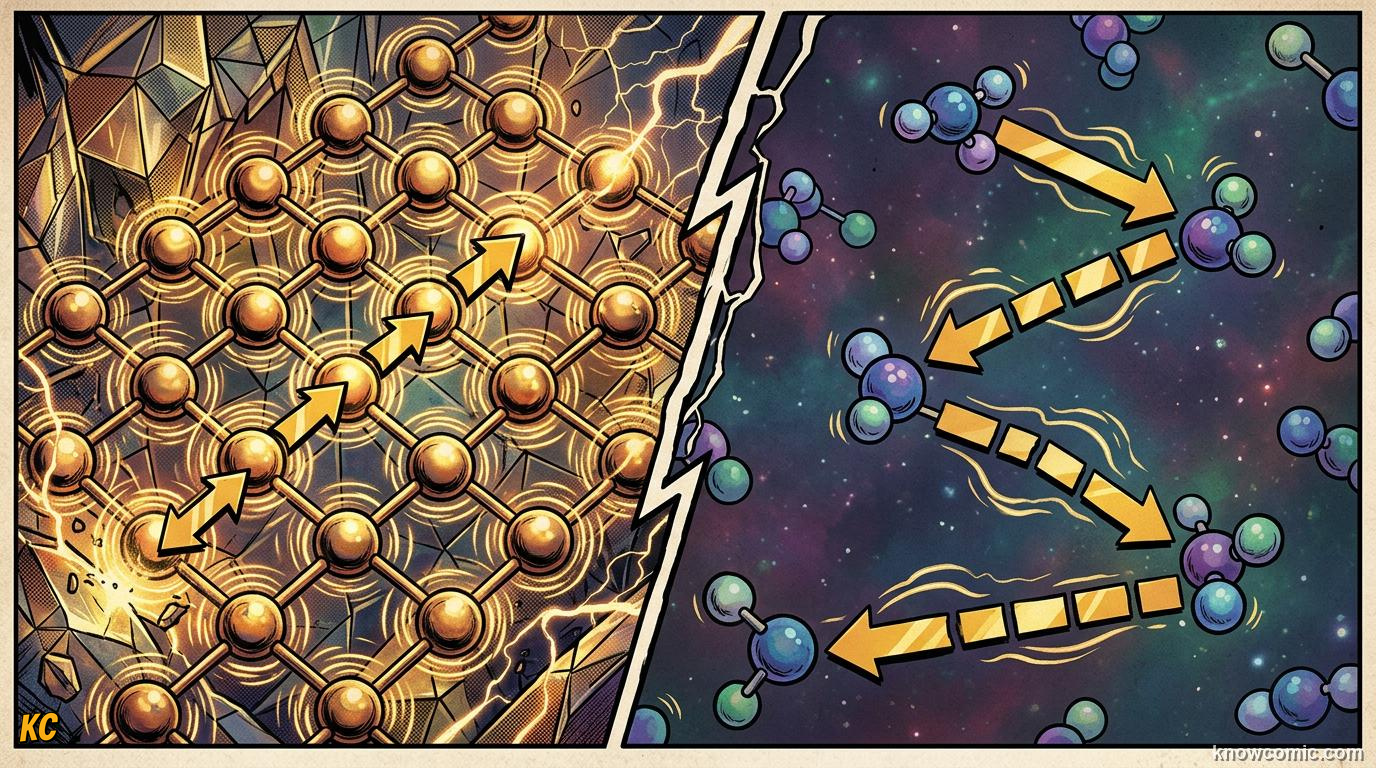

Comic illustration: how particle spacing affects sound wave speed
CLOSER = FASTER!
Sound speed depends on how quickly one particle can nudge the next. In steel, atoms are locked in a rigid grid, so a vibration ripples through in a flash. In water, molecules touch but flow around each other, giving a middle speed. In air, molecules must travel farther between collisions, so the wave creeps along. Denser, stiffer materials almost always carry sound faster.
🔬 TRY THIS
Place your ear on a desk while a friend taps the other end. You hear the tap through the wood before you hear it through the air. The solid beat the gas in a sound speed race!
BUMP!
PAGE 4 OF 5 · SOUND SPEED IN REAL LIFE
EVERYDAY SCIENCE
Comic illustration: lightning flash before thunder and sonar in water
LIGHT BEATS SOUND!
During a storm you see lightning flash instantly, but thunder arrives seconds later. Light travels at about 300,000,000 m/s, while sound in air crawls at 343 m/s. Count the seconds between flash and boom to estimate how far away the strike landed. Divide by three for kilometers, or by five for miles. Warm air also speeds sound up because hot molecules move faster and bump sooner.
🌡️ TEMPERATURE FACT
Sound in air speeds up about 0.6 m/s for every degree Celsius the temperature rises. On a hot summer day, sound travels slightly faster than on a freezing winter morning.
BOOM!
THUNDER
Comic illustration: counting seconds between lightning and thunder
⚡ Flash arrives first
🔊 Boom follows behind
SONAR
Comic illustration: sonar pulses traveling through water
🚢 Ships ping sound underwater
🐬 Dolphins use it to navigate
RAIL TRACK
Comic illustration: hearing a train through a railroad track
🚂 Steel rails carry rumble far
👂 Workers hear trains early
PAGE 5 OF 5 · SPEED OF SOUND RECAP
PUT IT TOGETHER
Comic illustration: speed of sound recap across different materials
THE WHOLE STORY
Sound speed is not fixed. It depends on the medium: solids are fastest, liquids are in the middle, and gases like air are slowest. Tighter particle spacing means quicker bumps and faster waves. Temperature warms air and adds a little extra speed. Real life shows this everywhere, from thunder lagging behind lightning to sonar mapping the ocean floor.
🎯 REMEMBER
Steel ~5,000 m/s. Water ~1,500 m/s. Air ~343 m/s. Closer particles = faster sound. Light outruns sound by a huge margin. Next up: how your ears catch those waves!
FAST!
KEY IDEAS
Comic illustration: key facts about the speed of sound
🔩 Solids beat liquids and gases
🌡️ Warm air = slightly faster
NEXT UP
Comic illustration: preview of how ears hear sound
👂 Waves arrive at your ear
🧠 Topic 05: How Ears Hear!
🧠 QUIZ TIME!
THE SPEED OF SOUND · 5 QUESTIONS
QUESTION 01
Through which type of material does sound travel fastest?
QUESTION 02
About how fast does sound travel in air at room temperature?
QUESTION 03
Why do we see lightning before we hear thunder?
QUESTION 04
Why does sound travel faster in solids than in air?
QUESTION 05
How does warmer air affect the speed of sound?
